PräGnant XS | Manual blocking press

for one-off titles and name embossings

Version: Basic machine only
Product information "PräGnant XS | Manual blocking press"

The PräGnant XS is a compact manual foil-blocking press for one-off titles and name stampings. The book case (or other stampable product) is placed upright into the machine so that the blocking process may be observed all the time and – if necessary – be corrected or repeated. Expensive faulty blockings are therefore eliminated. The good view onto the product makes the machine also suitable for other individual works (gilding, blocking ornaments etc.). The quick change of type as well as the easy handling of the machine and its accuracy allow high-quality outcomes.

The PräGnant XS is available as a basic unit without equipment and as a complete package for 230V or 110V. Scope of delivery for complete package:

  • Electrically heated self-centering typeholder with 90mm span (9000-010) for 230V, (9000-011) for 110V
  • Thermostat for controlling temperature of the typeholder (6707-010) for 230V, (6707-020) for 110V
  • Angled plate, 30 mm for blocking finished books (9000-024)
  • Magnet for fixing the product in position (9000-054)
  • Steel ruler, 30 cm (6247-030)
  • Die-holding plate (9002-060)
  • Pair of tweezers (6268-002)
  • Starter set stamping foils (4800-001)
  • Set of 3 blocking dies, approx. 10 x 10 mm (smiley, heart, star) (66570001)
  • 2 sample cards foils 99991836 + 99991837)

Besides the standard version, the machine is also available as Type PräGnant XS-110 for the US and Japanese market. This model is equipped with a heated typeholder and multi-purpose thermostat for 110V.

Process

  1. First, the characters of the title to be stamped are put into the typeholder by means of tweezers.
  2. Then the typeholder is fixed in the machine and is heated by thermostat.
  3. Now the product support bar is adjusted to the required height and the product to be stamped is placed on to the bar.
  4. Then, if necessary, the stamping depth can be adjusted.
  5. The embossing can be carried out by holding the foil against the product and a quick, hard press with the hand lever.
Properties of "PräGnant XS | Manual blocking press"
Dimensions
Depth (mm): 250
Height (in mm): 430
Weight: 24 kgs
Width (in mm): 360
Technical details
Stamping pressure: approx. 250 kp by toggle-lever
Stamping table (H x W): 300 x 200 mm
Table version: adjustable in inclination
Technical specifications: adjustable support by means of lateral scales
Other properties
Category: Embossing devices and machines, Finish, Emboss, Personalise
https://www.youtube.com/watch?v=4wxoORENpXY

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Below you can see questions that other customers have asked about this product. Do you have a question of your own? Then feel free to ask us using the button below. You decide whether your question may be published.

Ja, auch eine Blindprägung ist möglich. Je nach Motiv und Material sollte hier jedoch getestet werden, ob der Druck ausreicht und wie die Prägung wirkt. Je nach Material kann es auch besser aussehen, wenn eine transparente, glänzende Prägefolie genutzt wird. Teilen Sie uns gerne mit welches Material Sie nutzen oder schicken Sie uns ein Muster, dann können wir einen Prägetest durchführen.

Advantages

The PräGnant XS is a very special embossing press. On the one hand, it convinces with its compact size, which makes it very easy to transport (e.g. in the optional trolley). On the other hand, many individual settings can be made - if necessary, the inclination of the embossing table, the embossing depth can be adjusted and the temperature can be controlled via an external thermostat. It is particularly worth mentioning that the embossing pressure can be precisely adjusted via the lever and thus many different materials can be neatly embossed. Since different texts are usually embossed, the embossing lines can be changed quickly. Furthermore, both characters and blocks can be embossed. In the conception of the PräGnant, it was taken into consideration that often finished products are personalised and that incorrect embossing can then become all the more expensive. Therefore, the view of and access to the product to be embossed was optimised in order to make re-embossing with adjusted temperature or higher pressure possible - without moving the product.

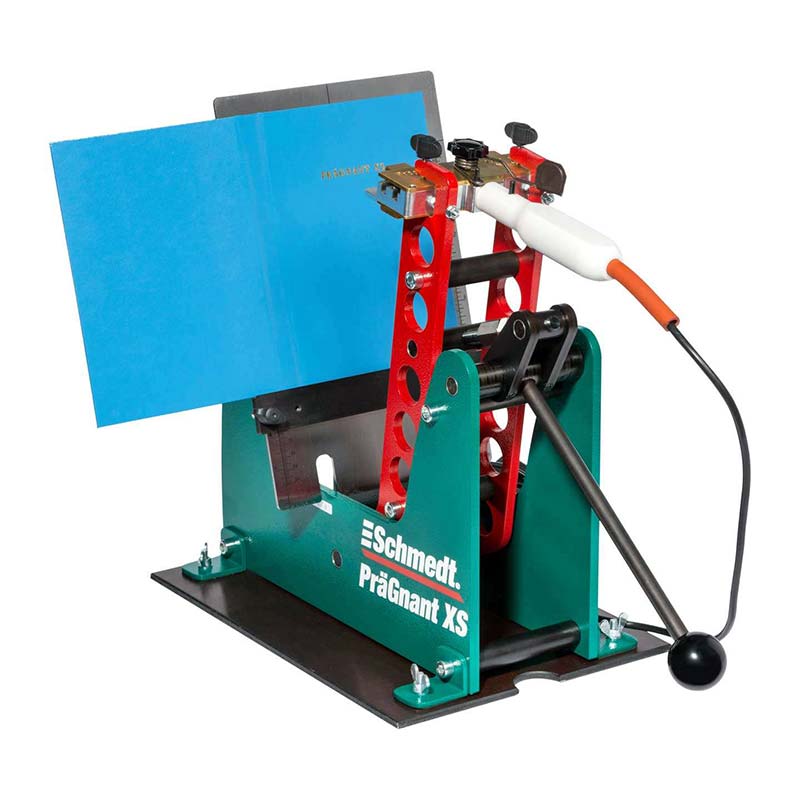

Animated markings image
1+
× Quick change of the embossing lines

The embossing lines of the typeholder can be adapted without any difficulty.

2+
× Adjustable embossing pressure

The embossing pressure can be individually adjusted via the lever.

3+
× Adjustable inclination

The inclination of the embossing table can be adjusted to enable embossing finished books.

4+
× Avoid embossing errors

The PräGnant was designed to provide an excellent view of the embossed material.

5+
× Easy to transport

Due to its compact size, the embossing press is extremely convenient to transport.

6+
× Versatile embossing

Both typestyle and blocks / clichés can be embossed.

× Quick change of the embossing lines

The embossing lines of the typeholder can be adapted without any difficulty.

× Adjustable embossing pressure

The embossing pressure can be individually adjusted via the lever.

× Adjustable inclination

The inclination of the embossing table can be adjusted to enable embossing finished books.

× Avoid embossing errors

The PräGnant was designed to provide an excellent view of the embossed material.

× Easy to transport

Due to its compact size, the embossing press is extremely convenient to transport.

× Versatile embossing

Both typestyle and blocks / clichés can be embossed.

Product comparison

We compare our two hot-foil stamping / embossing presses for single titles and name embossing PräGnant XS and PräGnant to clearly show the differences.

Stamping table size
Maximum book thickness
Table adjustable in inclination
Blocking pressure
Mobile use
Transport case
Typeholder 90 mm possible
Typeholder 200 mm possible
Quick-lock for typeholder fixation
Max. font size
Individual typestyles
Foil feed
Stop and scale for width alignment
Automatic centring of the book cover
Adjustment of book cover height
Embossing on finished books
Embossing with dies
Grooving tools (optional)
Round-blocking plate for creative designs (optional)
Stamping table size
300 x 200 mm
Maximum book thickness
30 mm
Table adjustable in inclination
Blocking pressure
250 kp
Mobile use
Transport case
✓ (optional)
Typeholder 90 mm possible
Typeholder 200 mm possible
Quick-lock for typeholder fixation
Max. font size
36 Pt
Individual typestyles
Foil feed
Stop and scale for width alignment
Automatic centring of the book cover
Adjustment of book cover height
both sides individually
Embossing on finished books
Embossing with dies
✓ (die-holding block)
Grooving tools (optional)
Round-blocking plate for creative designs (optional)
Stamping table size
430 x 500 mm
Maximum book thickness
50 mm
Table adjustable in inclination
Blocking pressure
400 kp
Mobile use
Transport case
Typeholder 90 mm possible
Typeholder 200 mm possible
Quick-lock for typeholder fixation
Max. font size
36 Pt
Individual typestyles
Foil feed
Stop and scale for width alignment
Automatic centring of the book cover
✓ (optional)
Adjustment of book cover height
by turning knob
Embossing on finished books
✓ (angled plate)
Embossing with dies
✓ (blockholder & die-holding block)
Grooving tools (optional)
✓ (optional)
Round-blocking plate for creative designs (optional)
✓ (optional)

Overview of our embossing presses

The PräGnant XS is part of our range of embossing presses. Our product range includes our proven PräGnant embossing press, the handy PräGnant XS for small workshops and mobile use, and our computer-controlled PräziMark in different versions. Discover all our embossing machines here:
