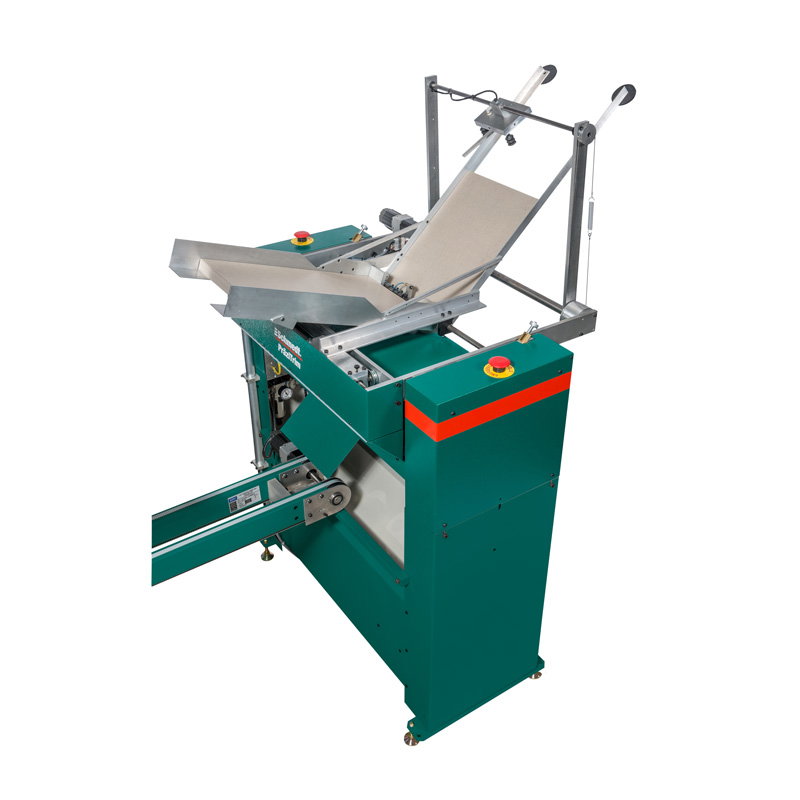

PräziTrim
Automatic board trimmer
Delivery time on request
cover and spine boards for the production of book
cases. It trims the cover boards and spines out of a sheet of grey board and transports them to the operator, who places them on a pre-glued cover material sheet.
The machine is controlled by a tablet PC.
- Board thickness (mm) : 1,5 - 3,5
- Blank width (mm) : 250 - 770
- Blank height (mm) : 150 - 400
- Cutting width (mm) : 6 - 700
- Cutting height (mm) : 127 - 355
- Output (pcs/h) : 250
- Power supply : 208-230 V / 50-60 Hz
- Air pressure supply (bar) : 4.75
Applications: book cases, photo books and albums, menus, ring binders, one-part products (e. g. calendar backs, game boards), asymmetric cases (with optional case support)
Properties of "PräziTrim"
| Dimensions | |
| Blank height (mm): | 150 - 400 |
|---|---|
| Blank width (mm): | 250 - 770 |
| Cutting height (mm): | 127 - 355 |
| Cutting width (mm): | 6 - 700 |
| Depth (mm): | 2440 |
| Height (in mm): | 1750 |
| Weight: | 325 kgs |
| Width (in mm): | 1143 |
| Output | |
| Output (pcs/h): | 250 |
| Output level: | Level 3: more than 200 pcs/h |
| Format range | |
| Blank height (mm): | 150 - 400 |
| Blank width (mm): | 250 - 770 |
| Board thickness (mm): | 1,5 - 3,5 |
| Cutting height (mm): | 127 - 355 |
| Cutting width (mm): | 6 - 700 |
| Connectors | |
| Air pressure supply (bar): | 4.75 |
| Nominal current: | 6 A |
| Power supply: | 208-230 V / 50-60 Hz |
| Other properties | |
| Category: | Case Making |
Login
No settings need to be made for changing end formats.
The cardboards are cut to fit exactly.
Cover boards and spine inserts are cut in one operation.
The cut boards are transported to the operator for immediate processing.
The PräziTrim can be used stand-alone or as a component of the Cover-1 system.
A barcode system is used to record information about dimensions for cutting.
No settings need to be made for changing end formats.
The cardboards are cut to fit exactly.
Cover boards and spine inserts are cut in one operation.
The cut boards are transported to the operator for immediate processing.
The PräziTrim can be used stand-alone or as a component of the Cover-1 system.
A barcode system is used to record information about dimensions for cutting.
