PräColl | Fanbinder

With built-in gluing machine and rounding blocks

Product information "PräColl | Fanbinder"

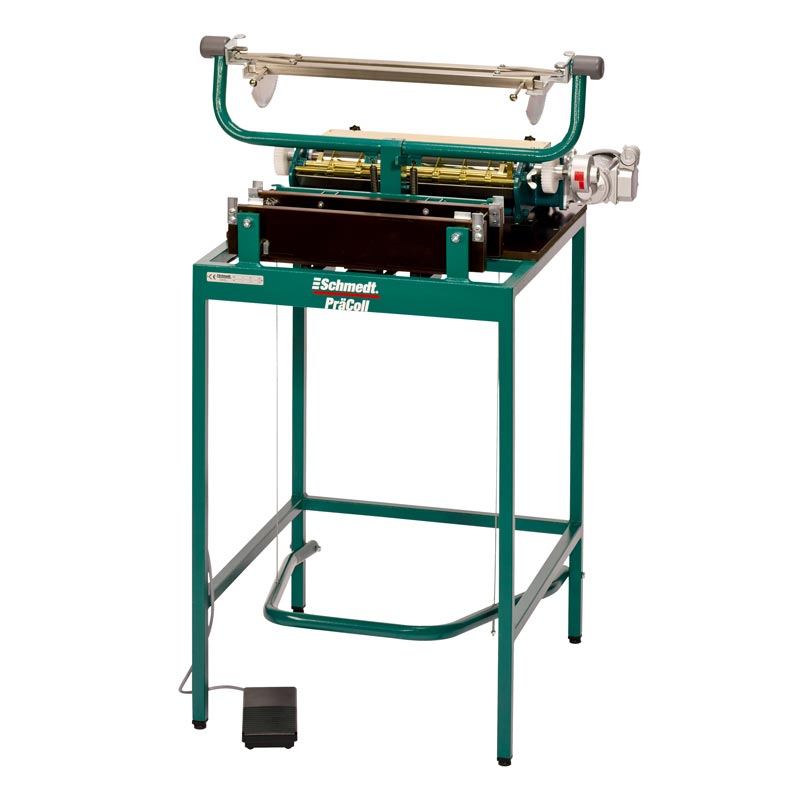

The PräColl is a semi-automatic adhesive-binding system for fanbinding one-off and multiple book blocks.
It comes with a set of different rounding blocks for the production of book blocks with rounded backs.
Fanning out the sheets during the gluing process ensures a strong durability of the binding
  • Block width (mm) : 110 - 450
  • Block height (mm) : 0 - 345
  • Block thickness (in mm) : 0 - 82
  • Scope of delivery : Basic machine, 2 drying clamps
  • Power supply : 230-240 V / 50-60 Hz

Applications: hardcover books with flat and rounded backs, library books, bibles, hymnals etc.

Radii of the rounding blocks:
1 - R 0 (flat)
2 - R 20 mm
3 - R 30 mm
4 - R 40 mm
5 - R 65 mm

Properties of "PräColl | Fanbinder"
Dimensions
Block height (mm): 0 - 345
Block thickness (in mm): 0 - 82
Block width (mm): 110 - 450
Depth (mm): 620
Height (in mm): 1400
Weight: 70 kgs
Width (in mm): 750
Output
Output (pcs/h): 60
Output level: Level 1: up to 100 pcs/h
Format range
Block height (mm): 0 - 345
Block thickness (in mm): 0 - 82
Block width (mm): 110 - 450
Connectors
Power supply: 230-240 V / 50-60 Hz
Other properties
Category: Book Block Making
Scope of delivery: Basic machine, 2 drying clamps
https://www.schmedt.de/ww2000/pdf/e-praecoll.pdf
https://www.youtube.com/watch?v=7O-RqUsFQis

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Below you can see questions that other customers have asked about this product. Do you have a question of your own? Then feel free to ask us using the button below. You decide whether your question may be published.

Animated markings image
1+
× Very good durability

By fanning out the pages during gluing, the binding holds very well.

2+
× Uniform gluing

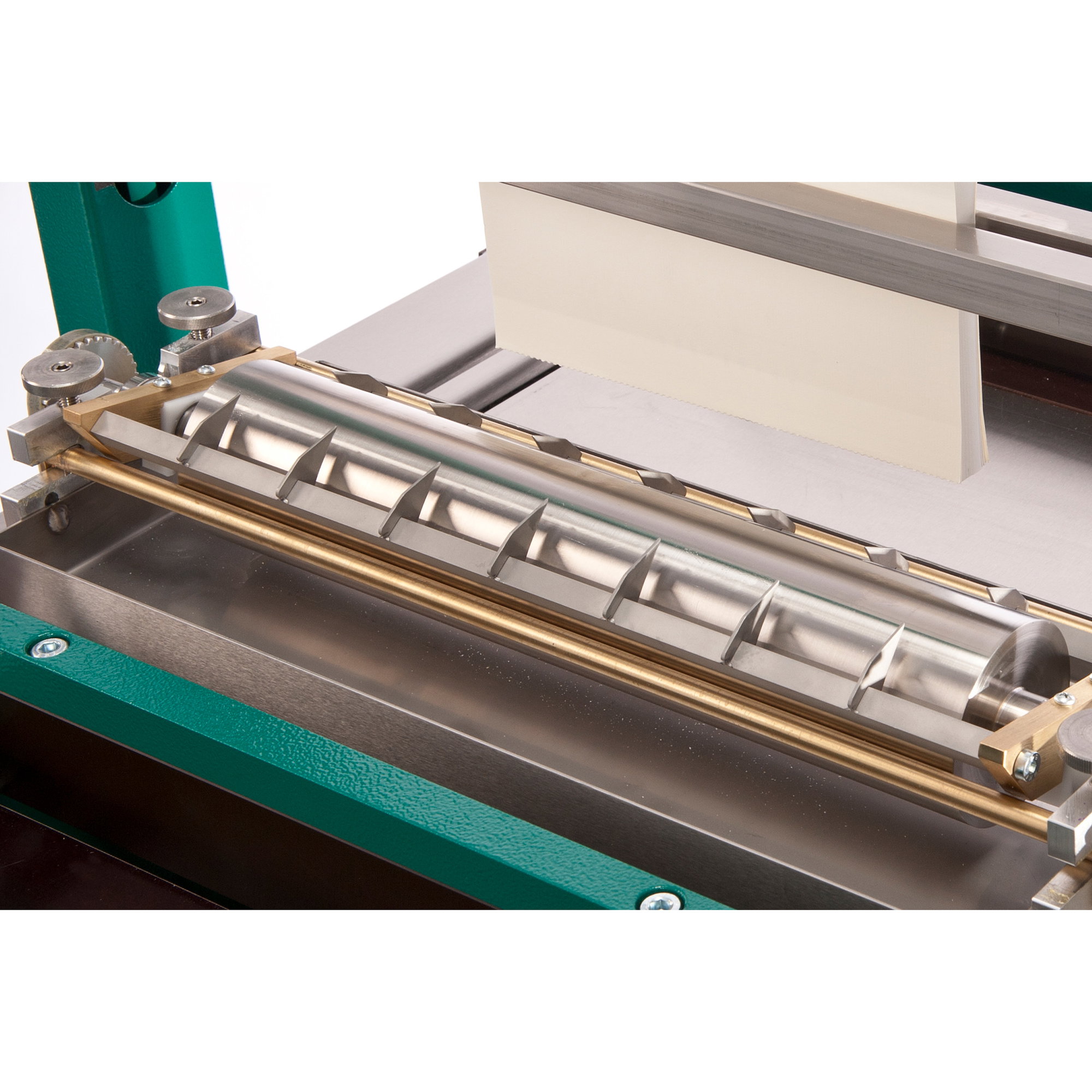

Uniform glue application due to toothed ring guide on the swivel bracket.

3+
× Excellent opening behaviour

The fan glue binding enables the spine to retain a high degree of flexibility and open up nicely.

4+
× Straight and rounded spines

Suitable for the production of book blocks with straight and rounded spines.

5+
× Good fixation of the book block

Endsheets are fixed and cannot move unintentionally.

6+
× No curly paper

Curling of paper is prevented even in the case of paper with wrong grain direction or art paper.

× Very good durability

By fanning out the pages during gluing, the binding holds very well.

× Uniform gluing

Uniform glue application due to toothed ring guide on the swivel bracket.

× Excellent opening behaviour

The fan glue binding enables the spine to retain a high degree of flexibility and open up nicely.

× Straight and rounded spines

Suitable for the production of book blocks with straight and rounded spines.

× Good fixation of the book block

Endsheets are fixed and cannot move unintentionally.

× No curly paper

Curling of paper is prevented even in the case of paper with wrong grain direction or art paper.
