Mechanisms | Connecting materials

Mechanisms

Mechanics are true keepers of order. With their help, loose-leaf collections become a tidy affair. Well stored, securely fastened, easy to turn the pages... The question is, which mechanism is the right one? They come in many different designs: D- and ring-shaped, with 2, 4 or 6 rings, 2, 4 or 6 bows, with or without a lever as a file mechanism or as a timer mechanism with or without a wire hold-down or even with a tip clamp...? If required, we can also supply the matching rivets.

Filter products by:

Sort products by:

21Products

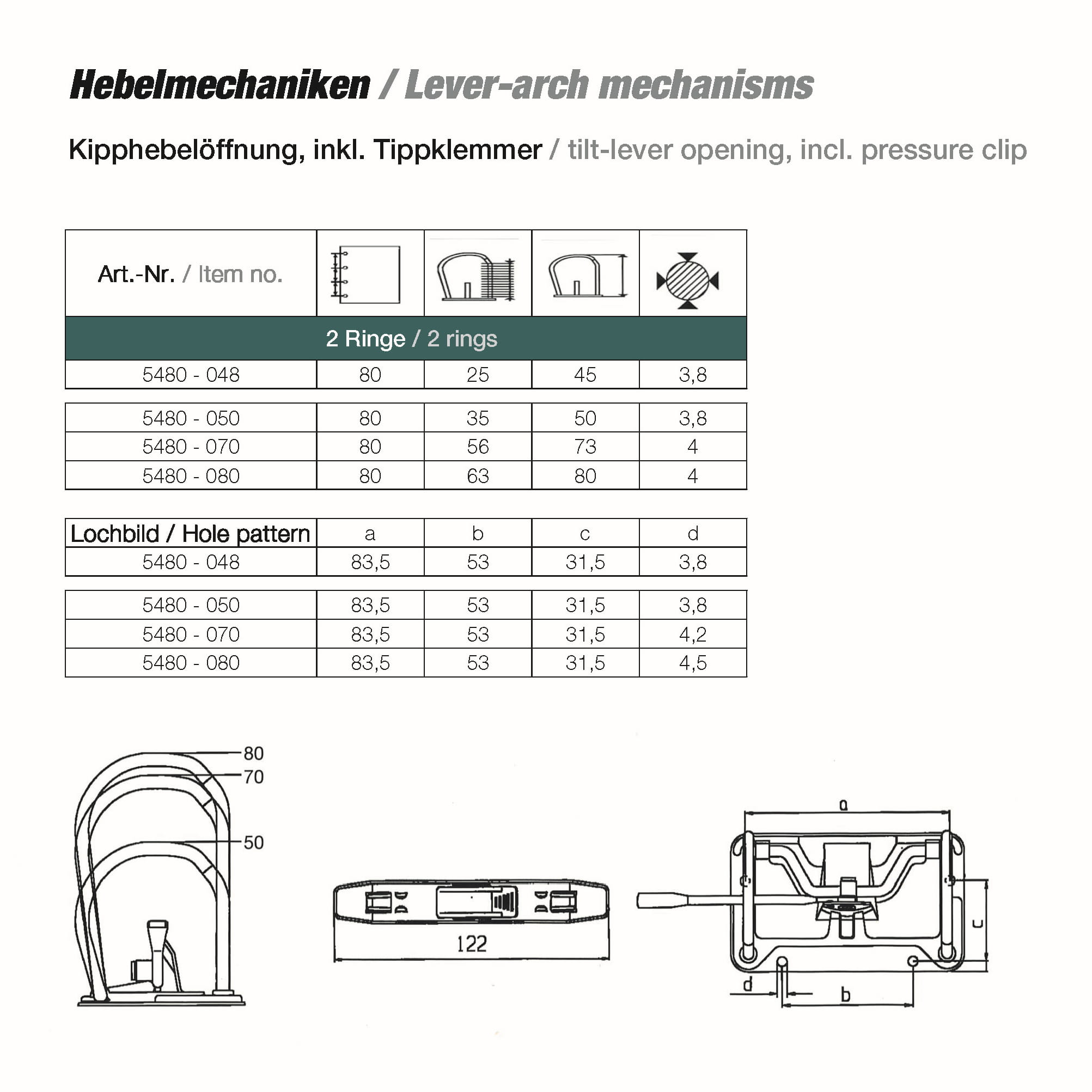

Lever-arch mechanism

for folders

Filling height (in mm) [4] : 25, 35, 56, 63

Variants from €0.53*

Columbus clamp, transparent

Arch holder for lever-arch mechanisms

In stock, deliverable at short notice

from €0.14* to €0.40*

Pressure clip for lever-arch mechanisms

for hole spacing 80 mm

In stock, deliverable at short notice

from €0.11* to €0.28*

Wire clip for ring binders

nickel-plated

Length (in mm) [2] : 110, 150

Hole spacing (in mm) [2] : 65, 80

Variants from €0.05*

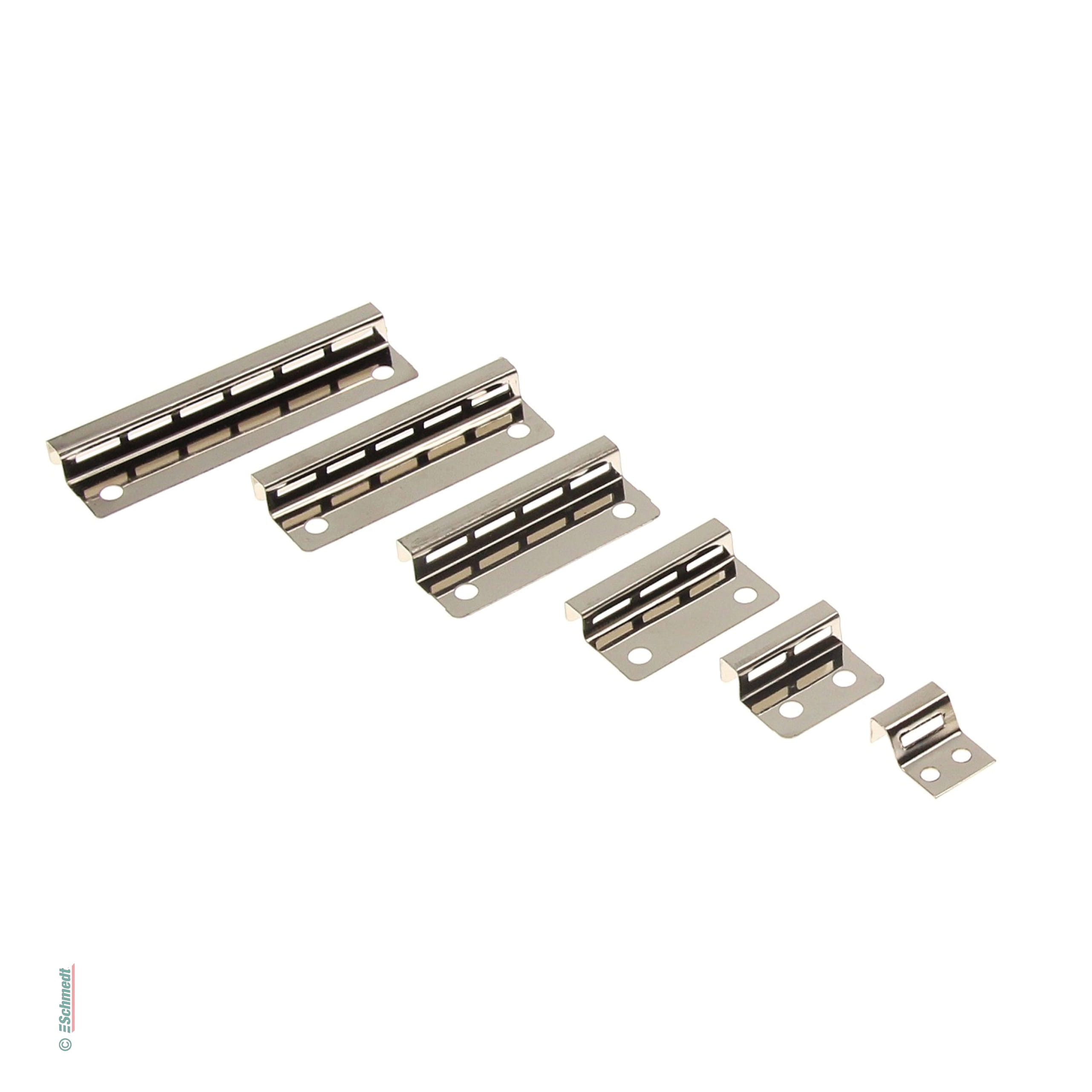

End plates for multiple-bar mechanisms

in different versions

Width (in mm) [6] : 15, 25, 37, 50, 60, 75

Slots [6] : 1, 2 (9 mm wide), 3 (9 mm wide), 4 (9.5 mm wide), 5 (9 mm wide), 6 (9.75 mm wide)

Variants from €0.11*

Wire rod for multiple-bar mechanisms

Length: 310 mm for DIN A4

In stock, deliverable at short notice

from €0.16* to €0.41*

Ring mechanism with 4 rings Simplex R

Ring distance: 45 - 65 - 45 mm [A5]

Type [2] : SIR 212/04/15 (15), SIR 210/04/25 (21)

Filling height (in mm) [2] : 11, 19

Variants from €0.62*

Ring mechanism with 4 rings Standard XR

Ring distance: 80 - 80 - 80 mm, bar-type

Type [4] : SXR 272/04/16 (15), SXR 290/04/20 (21), SXR 290/04/25 (21), SXR 290/04/30 (21)

Filling height (in mm) [4] : 11, 14, 19, 24

Variants from €0.49*

Arch-type mechanism Standard B

with 2 arches / Arch distance: 80 mm [A4]

Type [8] : STB 123/02/20 (21), STB 123/02/25 (21), STB 132/02/30 (27), STB 132/02/35 (27), STB 132/02/40 (27), STB 132/02/45 (27), STB 132/02/52 (27), STB 132/02/65 (38)

Filling height (in mm) [8] : 20, 25, 30, 35, 40, 45, 52, 65

Variants from €0.37*

Arch-type mechanism Standard B

with 4 arches with distance: 45 - 65 - 45 mm [A5]

Type [2] : STB 210/04/25 (21), STB 210/04/30 (27)

Filling height (in mm) [2] : 25, 30

Variants from €1.05*

Arch-type mechanism Standard B

with 4 arches with distance: 80 - 80 - 80 mm [A4]

Type [10] : STB 290/04/20 (21), STB 290/04/25 (21), STB 290/04/30 (27), STB 290/04/35 (27), STB 290/04/40 (27), STB 290/04/45 (27), STB 290/04/52 (27), STB 290/04/65 (38), STB 290/04/80 (38), STB 290/04/100 (38)

Filling height (in mm) [10] : 20, 25, 30, 35, 40, 45, 52, 65, 80, 100

Variants from €0.93*

Ring mechanism with 2 rings Standard R

Ring distance: 80 mm [A4]

Type [6] : STR 123/02/13 (17), STR 123/02/16 (17), STR 123/02/20 (21), STR 123/02/25 (21), STR 123/02/30 (21), STR 132/02/38 (27)

Filling height (in mm) [6] : 9, 12, 14, 19, 24, 33

Variants from €0.26*

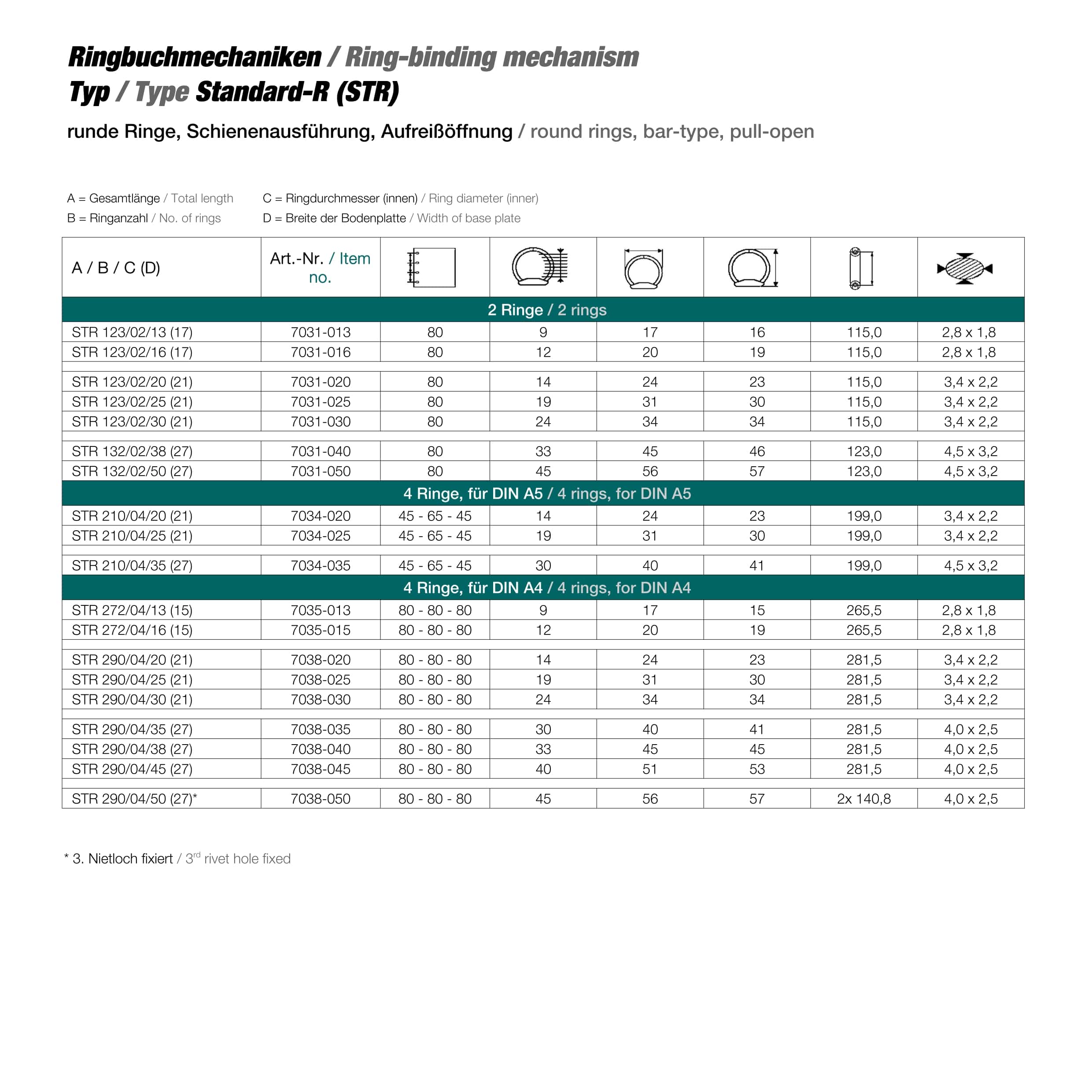

Ring mechanism with 4 rings Standard R

Ring distance: 45 - 65 - 45 mm [A5]

Type [2] : STR 210/04/20 (21), STR 210/04/25 (21)

Filling height (in mm) [2] : 14, 19

Variants from €0.84*

Ring mechanism with 4 rings Standard R

Ring distance: 80 - 80 - 80 mm [A4]

Type [9] : STR 272/04/13 (15), STR 272/04/16 (15), STR 290/04/20 (21), STR 290/04/25 (21), STR 290/04/30 (21), STR 290/04/35 (27), STR 290/04/38 (27), STR 290/04/45 (27), STR 290/04/50 (27)

Filling height (in mm) [9] : 9, 12, 14, 19, 24, 30, 33, 40, 45

Variants from €0.55*

Mechanism with 2 rings Original Combi D

Ring distance: 80 mm [A4]

Type [12] : OCD 123/02/10 (17), OCD 123/02/16 (21), OCD 123/02/20 (21), OCD 123/02/25 (21), OCD 132/02/30 (27), OCD 132/02/35 (27), OCD 132/02/40 (27), OCD 132/02/45 (27), OCD 132/02/50 (27), OCD 132/02/55 (38), OCD 132/02/60 (38), OCD 132/02/65 (38)

Filling height (in mm) [12] : 10, 16, 20, 55, 60, 65, 25, 30, 35, 40, 45, 50

Variants from €0.29*

Mechanism with 4 rings Original Combi D

Ring distance: 45 - 65 - 45 mm [A5]

Type [5] : OCD 210/04/20 (21), OCD 210/04/25 (21), OCD 210/04/30 (27), OCD 210/04/35 (27), OCD 210/04/40 (27)

Filling height (in mm) [5] : 20, 25, 30, 35, 40

Variants from €0.86*

Mechanism with 4 rings Original Combi D

Ring distance: 80 - 80 - 80 mm [A4]

Type [11] : OCD 290/04/16 (21), OCD 290/04/20 (21), OCD 290/04/25 (21), OCD 290/04/30 (27), OCD 290/04/35 (27), OCD 290/04/40 (27), OCD 290/04/45 (27), OCD 290/04/50 (27), OCD 290/04/55 (38), OCD 290/04/60 (38), OCD 290/04/65 (38)

Filling height (in mm) [11] : 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65

Variants from €0.58*
