PräziRibbon | Bookmark attaching machine

to attach page-marking ribbon (book mark)

Product information "PräziRibbon | Bookmark attaching machine"

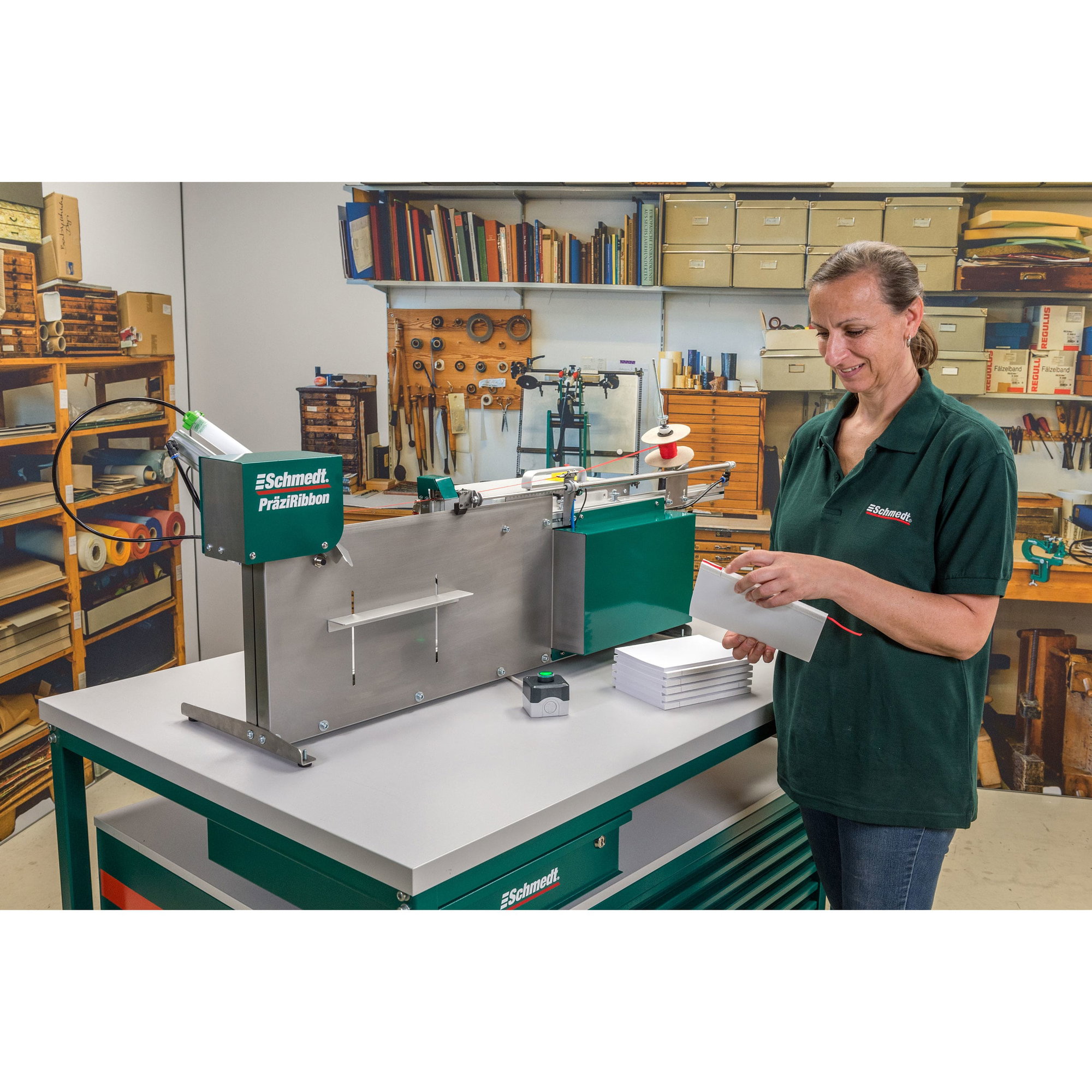

The PräziRibbon is designed to quickly and easily attach a page-marking ribbon (book mark) to the book block. The glue applicator applies a drop of glue on to the book block. The book mark is folded and pressed on to the book by means of a roller. Now the book mark is cut off neatly at the other end of the book block at the preset length, and the book block is removed.

Process

  1. To prepare the machine for operation, the glue applicator is filled with glue, the book mark is mounted and the required ribbon length is preset.
  2. The book block is now opened and placed over the book mark onto the support and the cycle button is pressed.
  3. The glue applicator is lowered and applies a drop of glue on to the book block.
  4. The ribbon is now folded and pressed on to the book by means of a roller.
  5. Now the book mark is cut off at the preset length on the other side of the machine, and the book block may be removed.
  6. The book mark is advanced automatically and fixed in the ribbon support. Now the next book block may be placed into the machine.
Properties of "PräziRibbon | Bookmark attaching machine"
Dimensions
Block height (mm): 100 - 350
Block thickness (in mm): min. 7
Block width (mm): 70 - 250
Book mark width (mm): 4 - 10
Depth (mm): 380
Height (in mm): 600
Weight: 35 kgs
Width (in mm): 1300
Output
Output (pcs/h): 180
Output level: Level 2: 101 - 200 pcs/h
Format range
Block height (mm): 100 - 350
Block thickness (in mm): min. 7
Block width (mm): 70 - 250
Book mark max. cutting length (mm): 460
Book mark width (mm): 4 - 10
Connectors
Air pressure supply (bar): 6
Electric power: 50 W
Power supply: 230-240 V / 50-60 Hz
Other properties
Category: Book Block Making, Finish, Emboss, Personalise
https://www.schmedt.de/ww2000/pdf/e-praeziribbon.pdf

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Below you can see questions that other customers have asked about this product. Do you have a question of your own? Then feel free to ask us using the button below. You decide whether your question may be published.

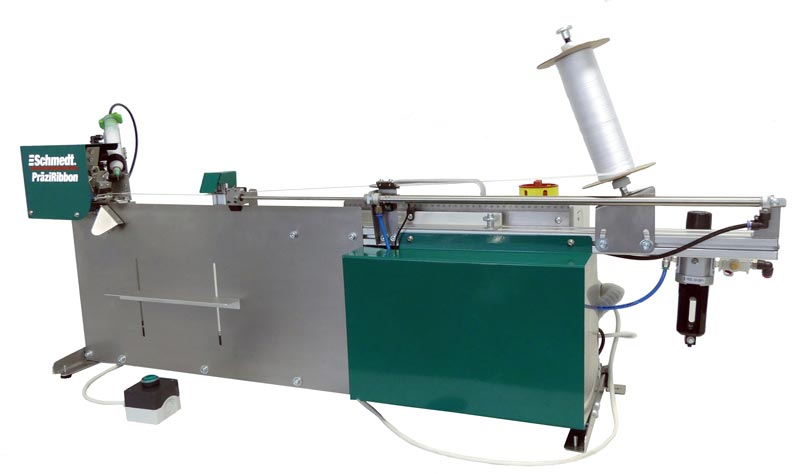

Advantages

Otherly very time-consuming manual processes are automated with the PräziRibbon. The bookmark ribbon is wetted with adhesive, cut to the preset length, folded over and then pressed against the book block. When the book block has then been removed, the next piece of bookmark ribbon is advanced.

Animated markings image
1+

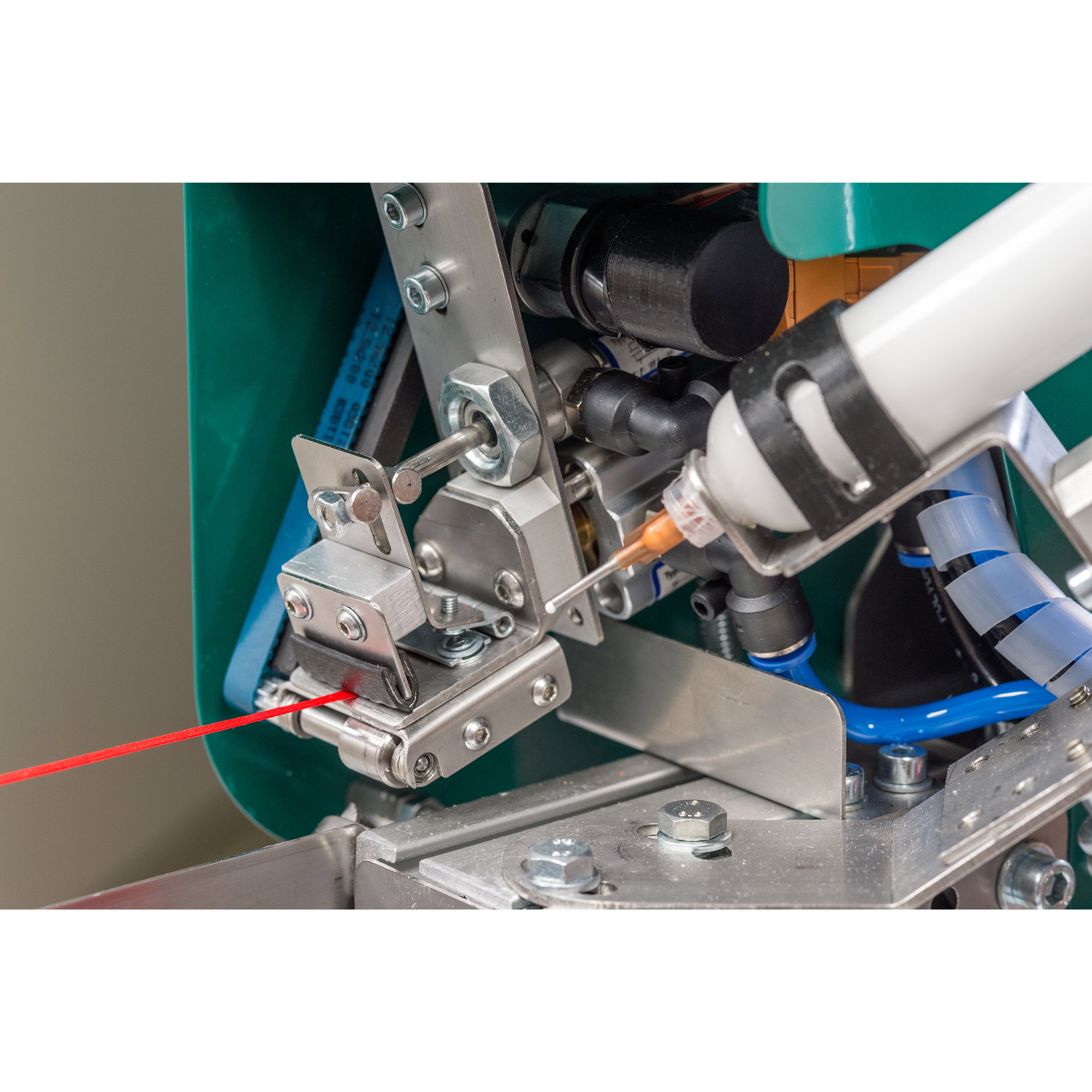

× Clean glue application

The integrated applicator ensures clean adhesive application.

2+
× Automatic cutting of the bookmark ribbon

The bookmark ribbon is automatically cut to the set length.

3+
× Automatic folding & pressing of the bookmark ribbon

Bookmark ribbons are automatically folded over and attached to the book block.

4+
× Automatic feed

Automatic feed of the bookmark ribbon for the next book block.

× Clean glue application

The integrated applicator ensures clean adhesive application.

× Automatic cutting of the bookmark ribbon

The bookmark ribbon is automatically cut to the set length.

× Automatic folding & pressing of the bookmark ribbon

Bookmark ribbons are automatically folded over and attached to the book block.

× Automatic feed

Automatic feed of the bookmark ribbon for the next book block.
