Timer mechanism with 6 rings Perfekt R

with tilt-lever opening

Filling height (in mm): 12 | Ring spacing (in mm): 2x 19,05 - 50,8 - 2x 19,05 | Type: PUR 171/06/16 (15)
Skip image gallery

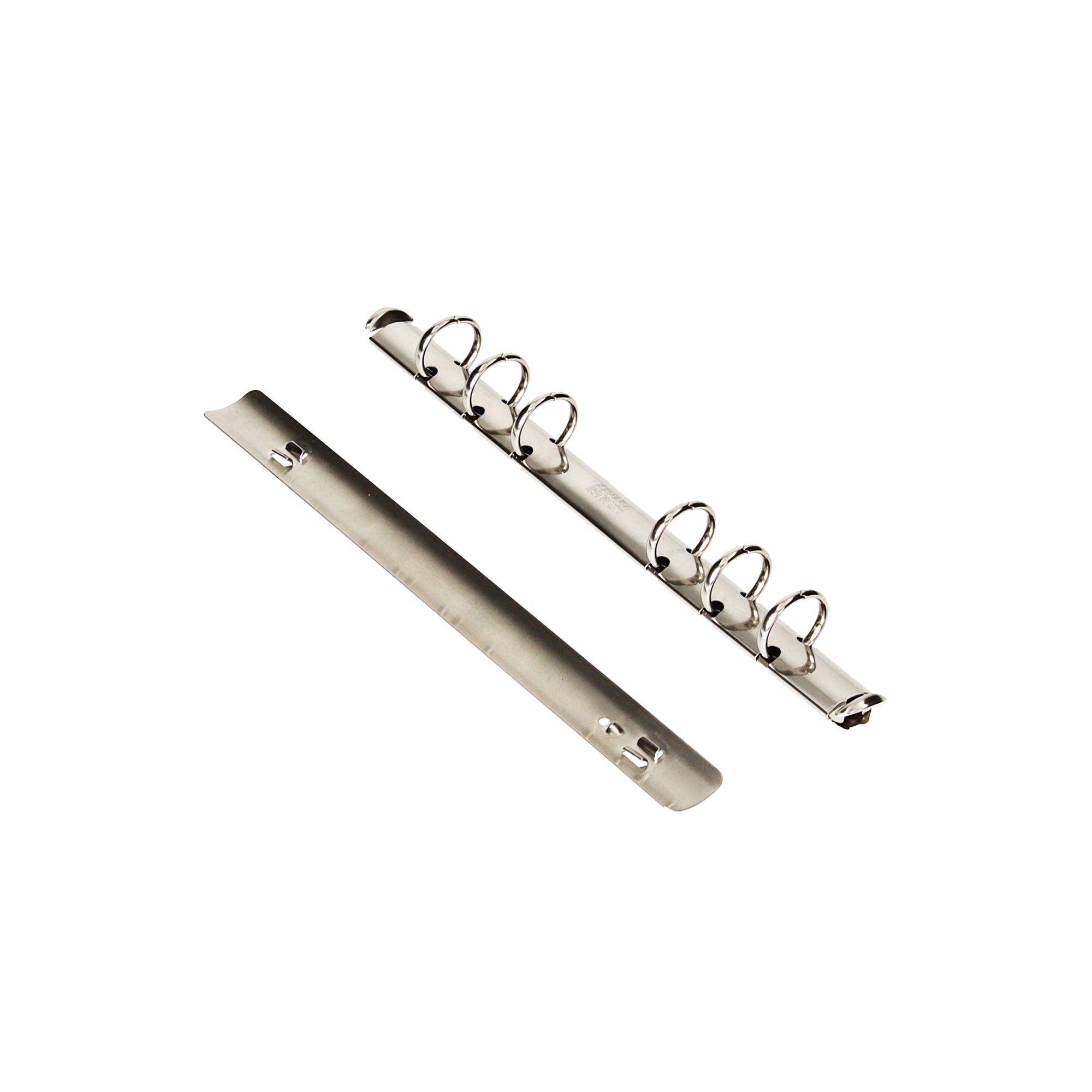

Timer mechanism with 6 rings Perfekt R - Type PUR 171/06/16 (15) - Filling height (in mm) 12 - Ring spacing (in mm) 2x 19,05 - 50,8 - 2x 19,...
Timer mechanism with 6 rings Perfekt R - with tilt-lever opening - Mechanism for the production of pocket diaries... - image-1
Timer mechanism with 6 rings Perfekt R - with tilt-lever opening - Mechanism for the production of pocket diaries... - image-2
Timer mechanism with 6 rings Perfekt R - Type PUR 171/06/16 (15) - Filling height (in mm) 12 - Ring spacing (in mm) 2x 19,05 - 50,8 - 2x 19,...
Timer mechanism with 6 rings Perfekt R - with tilt-lever opening - Mechanism for the production of pocket diaries... - image-1
Timer mechanism with 6 rings Perfekt R - with tilt-lever opening - Mechanism for the production of pocket diaries... - image-2

€5.73*

Net price / 1 piece
(€573.00* / 100 pieces)
€6.82*
Gross price / 1 piece
incl. 19% VAT ⓘ

In stock, deliverable at short notice

Quantity Price / 100 pieces
From 1 piece €573.00*
From 10 pieces €358.00*
From 300 pieces €287.00*
From 600 pieces €238.00*
From 1500 pieces €215.00*
Filling height (in mm)
Ring spacing (in mm)
Type
piece
Total: *
Gross: * Gross total incl.
19% VAT
Item number: 70706015
Filling height (in mm): 12
Ring spacing (in mm): 2x 19,05 - 50,8 - 2x 19,05
Type: PUR 171/06/16 (15)
Product information "Timer mechanism with 6 rings Perfekt R"
Mechanism for the production of pocket diaries
  • Ring diameter, inner (in mm) : 16
  • Total length (in mm) : 171
  • Scope of delivery : incl. backplate Type RLE 16/175
  • Shape : round rings

Mounting:
STEP 1 – Fitting the bottom rail into the cover
The flat bottom rail is firmly integrated into the cover. To do this, position the rail in the desired spot on the cover board and then cover the board with your chosen binding material (e.g. book cloth, imitation leather or paper). The rail is now permanently fixed to the cover.

STEP 2 – Leave the bar’s hooks exposed
Important: It is essential to keep the locking tabs/hooks of the bottom bar exposed when covering the cover. Cut the binding material cleanly away at these points so that the hooks remain accessible. This is the only way to ensure the ring mechanism can be securely locked into place later.

STEP 3 – Click the ring mechanism into place
Now place the mechanism top (with the 6 rings) onto the exposed hooks of the bottom rail and press it firmly down until it clicks audibly into place. The connection is now secure and permanent. The rings can then be easily opened and closed using the toggle lever.

Tip: Ensure that the binding material lies cleanly and smoothly against the hooks so that the mechanism sits flat and operates smoothly.

Properties of "Timer mechanism with 6 rings Perfekt R"

Dimensions
Ring diameter, inner (in mm): 16
Total height (in mm): 20
Total length (in mm): 171
Width (in mm): 15 (base plate)
Technical details
Number of rings: 6
Opening type: tilt-lever
Shape: round rings
Other properties
Category: Mechanisms
Minimum order quantity: as of 1 piece
Scope of delivery: incl. backplate Type RLE 16/175
